ISO 11992-3:2021 Road vehicles — Interchange of digital information on electrical connections between towing and towed vehicles —Part 3: Application layer for equipment other than brakes and running gear
标准简介

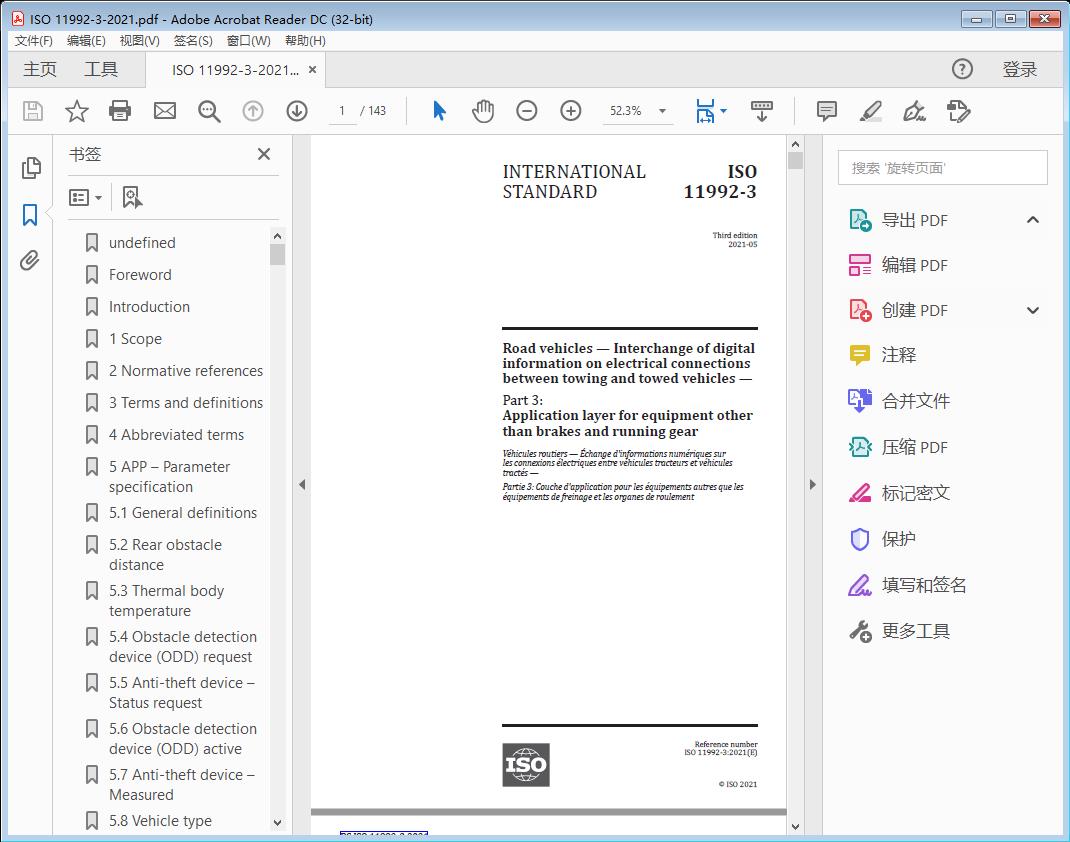

Road vehicles — Interchange of digital information on electrical connections between towing and towed vehicles —Part 3: Application layer for equipment other than brakes and running gear是国际标准化组织于2021-05发布的ISO标准，适用于世界范围。标准截图
标准文档说明
标准文档类型为Road vehicles — Interchange of digital information on electrical connections between towing and towed vehicles —Part 3: Application layer for equipment other than brakes and running gear高清PDF版本（文字版），标准文档内可进行搜索，可以复制原文，可粘贴。标准部分原文
INTERNATIONAL STANDARD ISO 11992-3:2021(E)
Road vehicles — Interchange of digital information on electrical connections between towing and towed vehicles —
Part 3: Application layer for equipment other than brakes and running gear
1 Scope
This document specifies the application layer, the payload of messages, and parameter groups for equipment other than brakes and running gears, to ensure the interchange of digital information between road vehicles with a maximum authorized total mass greater than 3 500 kg and their towed vehicles, including communication between towed vehicles.
This document supports the parameters and message sets for object detection (OD). The installation of the object detection (OD) device compliant to this document in the towed vehicle is identified by a dedicated message.
Additionally, some lighting parameters and messages are specified.
The conformance and interoperability test plans are not part of this document.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content constitutes requirements of this document. For dated references, only the edition cited applies. For undated references, the latest edition of the referenced document (including any amendments) applies.
ISO 612, Road vehicles — Dimensions of motor vehicles and towed vehicles — Terms and definitions
ISO/IEC 8859-1, Information technology — 8-bit single-byte coded graphic character sets — Part 1: Latin alphabet No. 1
ISO 11992-2, Road vehicles — Interchange of digital information on electrical connections between towing and towed vehicles — Part 2: Application layer for brakes and running gear
ISO 80000-1, Quantities and units — Part 1: General
SAE J1939-21, Data Link Layer
SAE J1939 -71: 2020, Vehicle Application Layer
SAE J1939-DA, J1939 Digital Annex
SAE J1850, Class B Data Communications Network Interface
3 Terms a nd definiti ons
For the purposes of this document, the terms and definitions given in ISO 11992-2 and the following apply.
ISO 11992-3:2021(E)
ISO and IEC maintain terminological databases for use in standardization at the following addresses:
— ISO Online browsing platform: available at https://w ww .iso. org/o bp
— IEC Electropedia: available at http://w ww.e lectropedia. org/ 3.1
mean value
sum of all sample values divided by the number of samples
Note 1 to entry: to entry:
N
x
∑ i
i=1
x=
N
where
{x , x , ...x } are the observed values of the sample items;
1 2 N
N is the number of observations in the sample.
3.2
standard deviation
positive square root of the variance
Note 1 to entry: to entry:
N
2
xx−
()
∑ i
i=1
s=
N−1
where
x is the sample value;
x is the mean value;
i is the sample counter;
N is the number of observations in the sample.
[SOURCE: IEC Electropedia, 103-08-13, modified — Note 1 to entry has been added.]
3.3
trailer
towed or towing vehicle but not a commercial vehicle
4 Abbreviated terms
ABS anti-lock braking system
APP application
ASR anti-spin regulation (traction control system)
CAN controller area network
DA destination address
