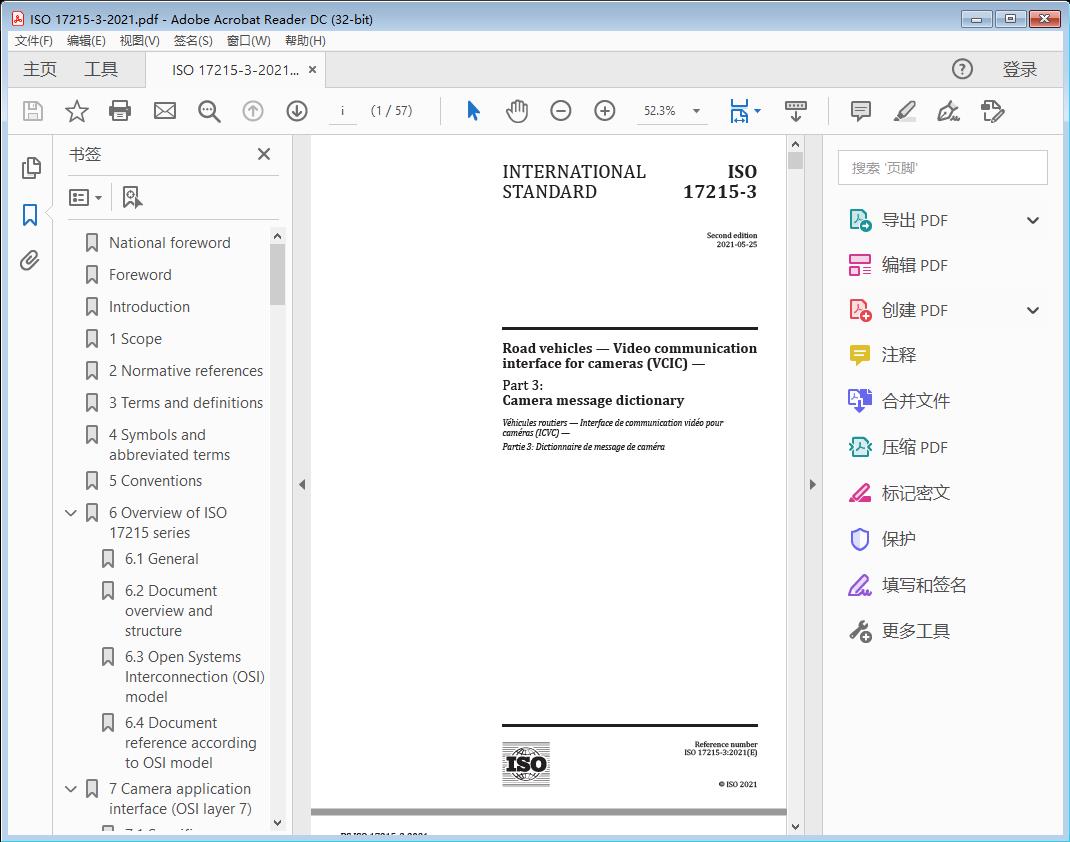

Road vehicles — Video communication interface for cameras (VCIC) —Part 3: Camera message dictionary(截图)



标准文档说明

标准文档类型为Road vehicles — Video communication interface for cameras (VCIC) —Part 3: Camera message dictionary高清PDF版本(文字版),标准文档内可进行搜索,可以复制原文,可粘贴。

标准部分原文

INTERNATIONAL STANDARD ISO 17215-3:2021

Road vehicles — Video communication interface for cameras (VCIC) —

Part 3: Camera message dictionary

1 Scope

This document specifies the standardized camera messages and data types used by a VCIC camera (OSI layer 7).

Applications hosted on ECUs want to communicate with one or more cameras (e.g. “Ask camera for parameters.”). If the applications can use standardized services supported by the cameras (API layer 7), the development of a vision application is independent on the camera used. The services can be implemented by general libraries.

The definition of streaming data is not an issue of this API.

2 Normative references

The following documents are referred to in the text in such a way that some or all of their content constitutes requirements of this document. For dated references, only the edition cited applies. For undated references, the latest edition of the referenced document (including any amendments) applies.

ISO 172151‑ , Road vehicles — Video communication interface for cameras (VCIC) — Part 1: General information and use case definition

ISO 17215‑2 , Road vehicles — Video communication interface for cameras (VCIC) — Part 2: Service discovery and control

ISO 17215‑4 , Road vehicles — Video communication interface for cameras (VCIC) — Part 4: Implementation of communication requirements

3 Terms a nd definiti ons

For the purposes of this document, the terms and definitions given in ISO 172151‑ and the following apply.

ISO and IEC maintain terminological databases for use in standardization at the following addresses:

— ISO Online browsing platform: available at https://www.iso.org/obp

— IEC Electropedia: available at http://www.electropedia.org/

3.1

extrinsic parameter

parameter that denotes the coordinate system transformations from 3D world (vehicle) coordinates (m,°) to 3D‑ camera coordinates (m,°)

3.2

frame rate

update rate per time of camera images

ISO 17215-3:2021

3.3

global shutter

exposure that exposes all pixels at the same time

3.4

histogram

type of chart that acts as a graphical representation of the tonal distribution in a digital image

3.5

intrinsic camera parameter

parameter that denotes the coordinate system transformations from 3D camera (m) to 2D pixel coordinates (pixel)

4 Symbols and abbreviated terms

Abbreviated Symbol Full term

term

API Application Programming Interface

AEC Automatic Exposure Control

AGC Automatic Gain Control

DAS Driver Assistance System

ECU Electronic Control Unit

HDR High Dynamic Range

HMI Human Machine Interface

ID Identifier

ISO International Organization for Standardization

LDR Low Dynamic Range

LSB Least significant bit

MAC Media Access Control

OSI Open Systems Interconnection

PSE Persistent storage entry

ROI ρ Region of Interest, i.e. sub‑ part of overall image

RPC Remote Procedure Call

5 Conventions

This document is based on the conventions as specified in the OSI service conventions ISO/IEC 10731 as they apply for physical layer, protocol, network, and transport protocol and diagnostic services.
