ISO 16460:2021 Intelligent transport systems — Localized communications — Communication protocol messages for global usage

标准简介

Intelligent transport systems — Localized communications — Communication protocol messages for global usage是于2021-04发布的ISO标准,适用于国际范围。

标准截图

Intelligent transport systems — Localized communications — Communication protocol messages for global usage

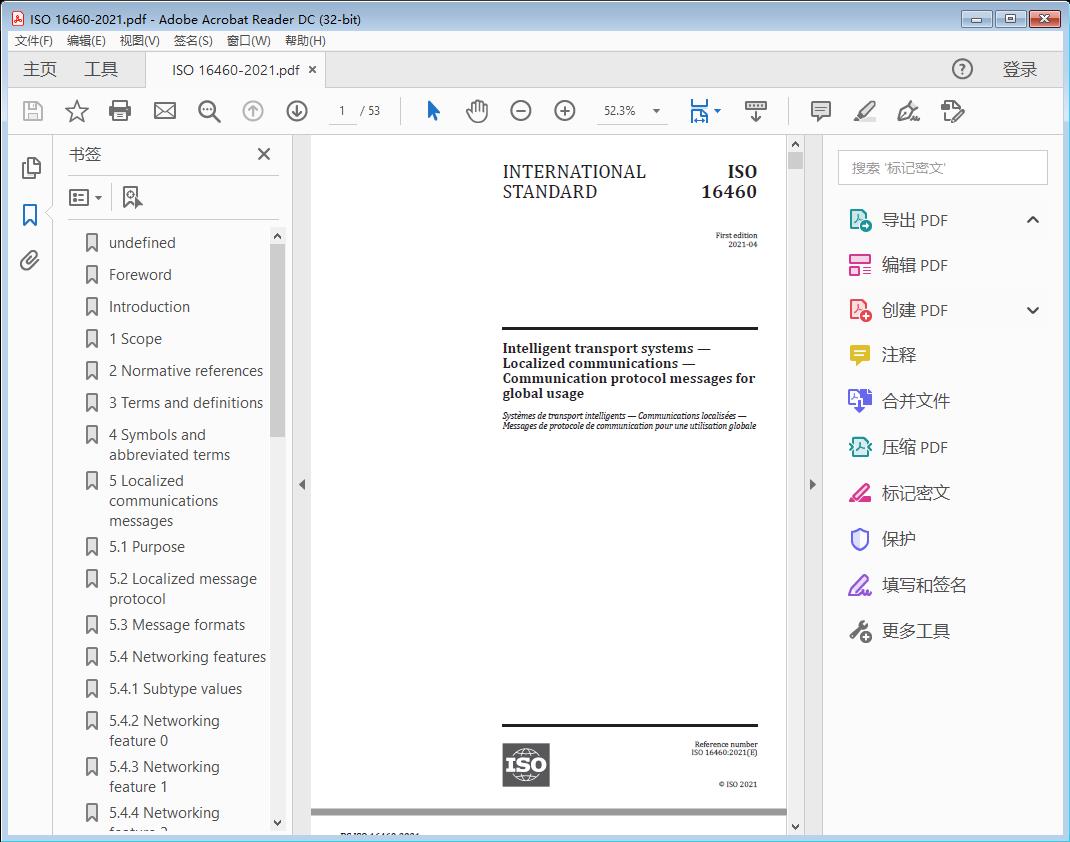

Intelligent transport systems — Localized communications — Communication protocol messages for global usage(截图)



标准文档说明

标准文档类型为Intelligent transport systems — Localized communications — Communication protocol messages for global usage高清PDF版本(文字版),标准文档内可进行搜索,可以复制原文,可粘贴。

标准部分原文

INTERNATIONAL STANDARD ISO 16460:2021(E)

Intelligent transport systems — Localized communications — Communication protocol messages for global usage

1 Scope

This document specifies:

— the Localized Message (LM) format: an NPDU of a networking & transport layer protocol that does not support routing of a packet through a network;

— the Service Advertisement Message (SAM): an APDU to be transported in an LM, for example;

— the Service Response Message (SRM): an APDU acknowledging a SAM that offered a service based [2]

on an ITS application class to be transported in an LM, for example;

— related basic requirements for procedures.

Specifications are partly made by normative references to IEEE 1609.3(TM)-2016.

NOTE These message format specifications and basic procedures need to be complemented by complete procedures and SAP specifications according to the context of usage, i.e. an ITS station specified in ISO 21217, or [13]

a WAVE device specified in IEEE 1609.0 or any other context.

2 Normative references

The following documents are referred to in the text in such a way that some or all of their content constitutes requirements of this document. For dated references, only the edition cited applies. For undated references, the latest edition of the referenced document (including any amendments) applies.

ISO/IEC 8824-1, Information technology — Abstract Syntax Notation One (ASN.1): Specification of basic notation

IEEE 1609.3(TM)-2016: Standard for Wireless Access in Vehicular Environments (WAVE) — Networking Services

3 Terms a nd definiti ons

No terms and definitions are listed in this document.

ISO and IEC maintain terminological databases for use in standardization at the following addresses:

— ISO Online browsing platform: available at https:// www .iso .org/o bp

— IEC Electropedia: available at http:// www.e lectropedia. org/ 4 Symbols and abbreviated terms

CIP communication interface parameter

C-ITS cooperative ITS

DNS domain name server

EIRP effective isotropic radiated power

ISO 16460:2021(E)

ESAP ETSI Service Announcement Protocol

FNTP Fast Networking & Transport Protocol

FSAP Fast Service Advertisement Protocol

HTG Harmonization Task Group

IPv6 Internet Protocol version 6

ITS Intelligent Transport Systems

ITS-AID ITS application identifier

ITS-PN ITS port number

LM localized message

LPP Local Port Protocol

MAC medium access control

NPDU network protocol data unit

OER octet encoding rules

OSI open system interconnection

PSID provider service identifier

RX CIP receiver CIP

SAM service advertisement message

SAM-ID SAM identifier

SAM-Count SAM change of content identifier

SAP service access point

SRM service response message

TCP transmission control protocol

TPID transport protocol identifier

TX CIP transmitter CIP

UPER unaligned packet encoding rules

VANET vehicular ad-hoc network

WAVE wireless access in vehicular environment

WSA WAVE service advertisement

WSMP WAVE short message protocol
