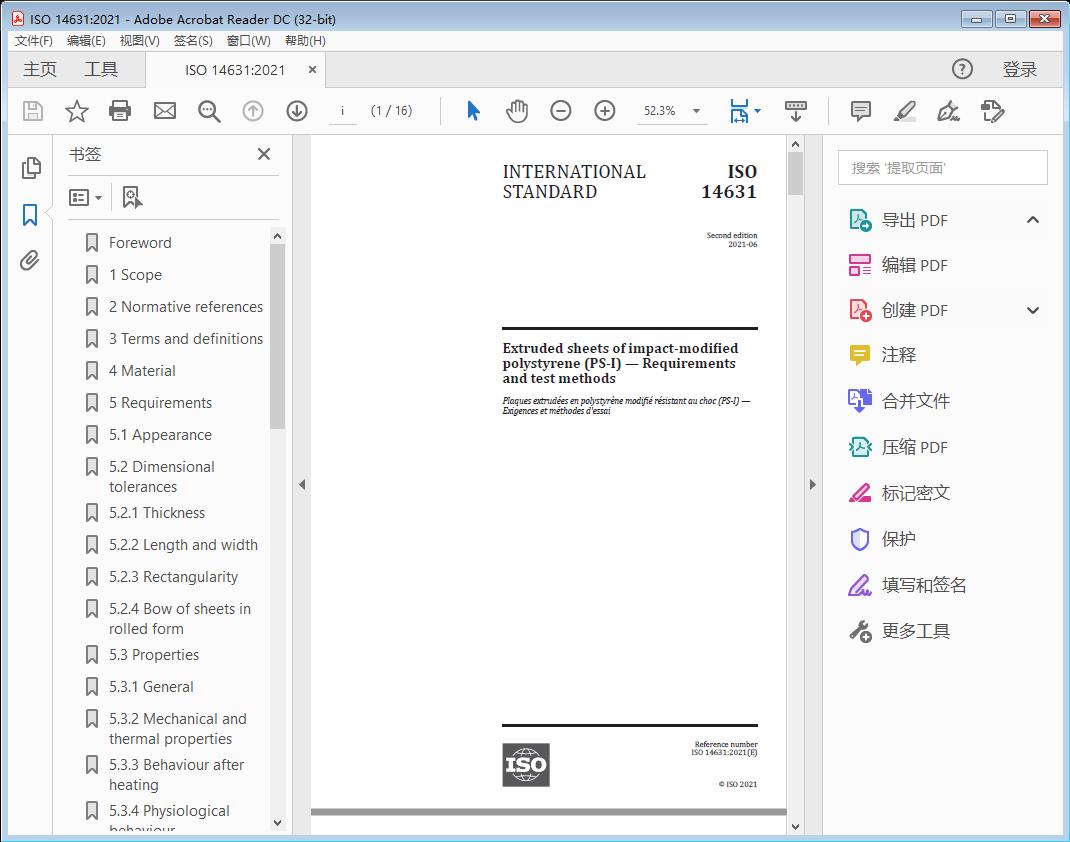

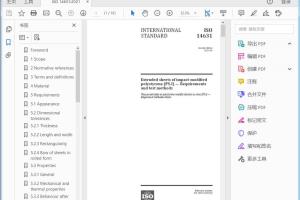

标准截图

标准文档说明

标准部分原文

Extruded sheets of impact-modified polystyrene (PS-I) — Requirements and test methods

1 Scope

This document specifies the requirements and test methods for solid flat extruded sheets of impact-

modified polystyrene (PS-I) without fillers and reinforcing materials. This document applies only to thickness 0,25 mm to 20,0 . It also applies to PS-I sheet in roll form.

2 Normative references

The following documents are referred to in the text in such a way that some or all of their content constitutes requirements of this document. For dated references, only the edition cited applies. For undated references, the latest edition of the referenced document (including any amendments) applies.

ISO 179-1, Plastics — Determination of Charpy impact properties — Part 2: Instrumented impact test

ISO 291, Plastics — Standard atmospheres for conditioning and testing

ISO 306, Plastics — Thermoplastic materials — Determination of Vicat softening temperature (VST)

ISO 527-1, Plastics — Determination of tensile properties — Part 1: General principles

ISO 527-2, Plastics — Determination of tensile properties — Part 2: Test conditions for moulding and extrusion plastics

ISO 1043-1, Plastics — Symbols and abbreviated terms — Part 1: Basic polymers and their special characteristics

ISO 1183-1, Plastics — Methods for determining the density of non-cellular plastics — Part 1: Immersion method, liquid pycnometer method and titration method

ISO 1183-2, Plastics — Methods for determining the density of non-cellular plastics — Part 2: Density gradient column method

ISO 2039-1, Plastics — Determination of hardness — Part 1: Ball indentation method

ISO 2818, Plastics — Preparation of test specimens by machining

ISO 6603-1, Plastics — Determination of multiaxial impact behaviour of rigid plastics — Part 1: Falling dart method

ISO 11501, Plastics — Film and sheeting — Determination of dimensional change on heating

ISO 19063-1, Plastics — Impact-resistant polystyrene (PS-I) moulding and extrusion materials — Part 1: Designation system and basis for specifications

3 Terms and definitions

No terms and definitions are listed in this document.

ISO and IEC maintain terminological databases for use in standardization at the following addresses:

— ISO Online browsing platform: available at https:// www .iso. org/ obp

— IEC Electropedia: available at http:// www .electropedia .org/ 4 Material

Sheets shall be made of PS-I extrusion compounds designated by ISO 19063-1 without filler and reinforcing material. Extrusion compounds can contain additives such as processing aids, stabilizers, flame protective agents and colorants. Compounds and additives of unknown identity shall not be used.

NOTE Legal conditions can cause a specific choice of extrusion compounds.

See 5.3.3.

5 Requirements

5.1 Appearance

Sheets shall be substantially free from bubbles, voids, cracks, visible impurities and other defects which would make them unfit for the intended use. Surfaces shall be substantially smooth, if not embossed, and free from grooves, sink marks or damages. Colorants shall be homogeneously distributed throughout the material. Slight colour differences based on extrusion compounds and processing are admissible. Admissible variations in any of the above as well as gloss level specifications, if required, shall be agreed between the interested parties. Sheets shall be examined in accordance with 6.3.

5.2 Dimensional tolerances

5.2.1 Thickness

Within any delivery of sheets, the maximum thickness difference from the nominal,

Δ h , in millimetres shall fall within the range shown in Formula (1):

1

|Δ h | ≤ (0,03 mm + 0,04 × h) (1)

1 n

where h is the nominal sheet thickness in millimetres.

n Within any individual sheet, the maximum thickness variation from the average actual value, Δh , in 2

millimetres, shall fall within the range shown in Formula (2):

|Δ h | ≤ (0,03 mm + 0,02 × h) (2)

2 n

Testing shall be in accordance with 6.4.1.

5.2.2 Length and width

Nominal length, l , and nominal width, b , of sheets shall be agreed between the interested parties. n n

Unless agreed otherwise, the length is in the direction of extrusion. For any individual sheet selected at random from any delivery, the tolerances of length and width shall be in accordance with Table 1. Testing shall be in accordance with 6.4.2.
