ISO 18541-3:2021 Road vehicles — Standardized access to automotive repair and maintenance information (RMI) —Part 3: Functional user interface requirements

标准简介

Road vehicles — Standardized access to automotive repair and maintenance information (RMI) —Part 3: Functional user interface requirements是于2021-06发布的ISO标准,适用于全球范围。

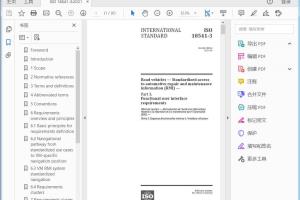

标准截图

Road vehicles — Standardized access to automotive repair and maintenance information (RMI) —Part 3: Functional user interface requirements
Road vehicles — Standardized access to automotive repair and maintenance information (RMI) —Part 3: Functional user interface requirements(截图)



标准文档说明

标准文档类型为Road vehicles — Standardized access to automotive repair and maintenance information (RMI) —Part 3: Functional user interface requirements高清PDF版本(文字版),标准文档内可进行搜索,可以复制原文,可粘贴。

标准部分原文

Road vehicles — Standardized access to automotive repair and maintenance information (RMI) —

Part 3: Functional user interface requirements

1 Scope

This document includes functional user interface requirements related to automotive repair and maintenance information (RMI) systems in order to standardize access to RMI for independent operators.

This document specifies all functional user interface requirements related to a vehicle manufacturer's RMI system. These requirements will reflect the deriving needs from the use cases as specified in ISO 18541-1.

2 Normative references

The following documents are referred to in the text in such a way that some or all of their content constitutes requirements of this document. For dated references, only the edition cited applies. For undated references, the latest edition of the referenced document (including any amendments) applies.

ISO 18541-1:2021, Road vehicles — Standardized access to automotive repair and maintenance information (RMI) — Part 1: General information and use case definition

3 Terms a nd definiti ons

For the purposes of this document, the terms and definitions given in ISO 18541-1 and the following apply.

ISO and IEC maintain terminological databases for use in standardization at the following addresses:

— ISO Online browsing platform: available at https:// www .iso .org/ obp

— IEC Electropedia: available at http:// www.e lectropedia .org/ 3.1

artefact

one of many kinds of tangible by-products produced during the development of software

4 Abbreviated terms

AR authorized repairer

FREQ- functional user interface requirement

IO independent operator

RMI repair and maintenance information

VCI vehicle communication interface

VM vehicle manufacturer

5 Conventions

This document is based on the conventions discussed in the OSI service conventions (ISO/IEC 10731).

6 Requirements overview and principles

6.1 Basic principles fo r requirements definiti on

The basic principles have been established as a guideline to define the requirements.

— BP1: the requirements stated in this document shall not specify any implementation details.

— BP2: requirements shall be expressed in terms of performance rather than design or descriptive characteristics. This approach leaves maximum freedom to technical development.

— BP3: the requirements shall allow for flexible navigational pathways for practical and state-of-the-

art access to RMI in the VM websites.

— BP4: the requirements shall allow for concepts to be able to implement navigational principles to minimize the impact to the existing VM RMI systems.

6.2 Navigational pathway from standardized u se cases to VM-specific navigation

position

Figure 1 illustrates the navigational pathway from use cases to VM-specific navigation position. Each VM RMI system starts with the RMI home page. If the user selects the “standardized navigation” the RMI system navigates to the VM-specific use cases implementation (see Figure 1, key 2) as defined in ISO 18541-1. Figure 1, keys 3 and 4 illustrate the VM-specific RMI support artefact.

The navigational pathway will not only lead the user to a navigated position but also help the user to follow the implementation of the use case to obtain the output. The standardized use cases are logical use cases and shall not necessarily be implemented as a one-step transaction from input to output. A sequence of technical transactions may be needed to obtain the output. The complete input may not be required in the first transaction but could be a step by step transaction sequence.
