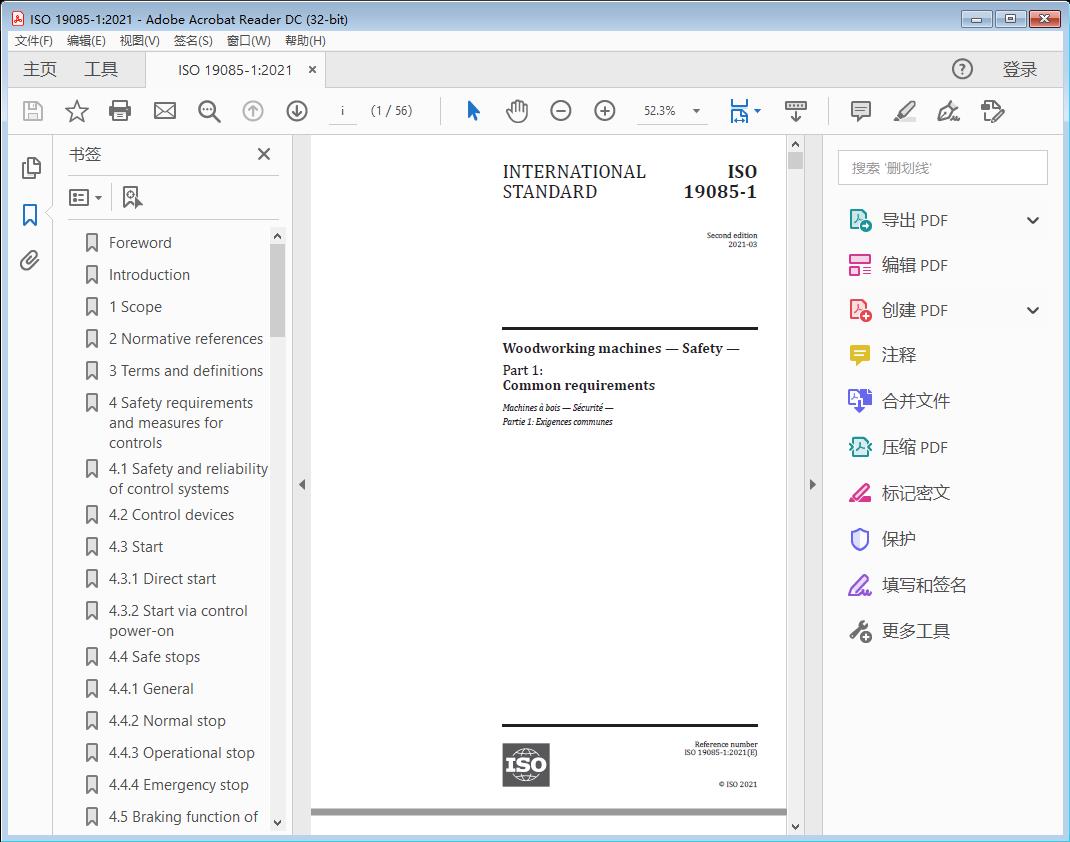

标准截图

标准文档说明

标准部分原文

Woodworking machines — Safety —

Part 1: Common requirements

1 Scope

This document gives the safety requirements and measures to reduce risks arising during operation, adjustment, maintenance, transport, assembly, dismantling, disabling and scrapping, related to woodworking machines capable of continuous production use, hereinafter referred as “machines”. These safety requirements and measures are those common to most of the machines, when they are used as intended and under the conditions foreseen by the manufacturer; reasonably foreseeable misuse has been considered too.

The machines are designed to process solid wood and material with similar physical characteristics to wood, with hand feed or integrated feed.

This document is intended to be used in conjunction with the other parts of the ISO 19085 series, applicable to specific machine types. The extent to which all significant hazards of a specific machine type are covered is indicated in the specific part of the ISO 19085 series relevant to that machine type. The hazards covered, at least partly, by the requirements of this document, are listed in Annex A.

It is not applicable to machines intended for use in potential explosive atmospheres or to machines manufactured prior to the date of its publication.

2 Normative references

The following documents are referred to in the text in such a way that some or all of their content constitutes requirements of this document. For dated references, only the edition cited applies. For undated references, the latest edition of the referenced document (including any amendments) applies.

ISO 3744:2010, Acoustics — Determination of sound power levels and sound energy levels of noise sources using sound pressure — Engineering methods for an essentially free field over a reflecting plane

ISO 3746:2010, Acoustics — Determination of sound power levels and sound energy levels of noise sources using sound pressure — Survey method using an enveloping measurement surface over a reflecting plane

ISO 4413:2010, Hydraulic fluid power — General rules and safety requirements for systems and their components

ISO 4414:2010, Pneumatic fluid power — General rules and safety requirements for systems and their components

ISO 4871:1996, Acoustics — Declaration and verification of noise emission values of machinery and equipment

ISO 11201:2010, Acoustics — Noise emitted by machinery and equipment — Determination of emission sound pressure levels at a work station and at other specified positions in an essentially free field over a reflecting plane with negligible environmental corrections

ISO 11202:2010, Acoustics — Noise emitted by machinery and equipment — Determination of emission sound pressure levels at a work station and at other specified positions applying approximate environmental corrections

ISO 11204:2010, Acoustics — Noise emitted by machinery and equipment — Determination of emission sound pressure levels at a work station and at other specified positions applying accurate environmental corrections

ISO 12100:2010, Safety of machinery — General principles for design — Risk assessment and risk reduction

ISO 13849-1:2015, Safety of machinery — Safety-related parts of control systems — Part 1: General principles for design

ISO 13850:2015, Safety of machinery — Emergency stop function — Principles for design

ISO 13851:2019, Safety of machinery — Two-hand control devices — Principles for design and selection

ISO 13856-1:2013, Safety of machinery — Pressure-sensitive protective devices — Part 1: General principles for design and testing of pressure-sensitive mats and pressure-sensitive floors

ISO 13856-2:2013, Safety of machinery — Pressure-sensitive protective devices — Part 2: General principles for design and testing of pressure-sensitive edges and pressure-sensitive bars

ISO 13856-3:2013, Safety of machinery — Pressure-sensitive protective devices — Part 3: General principles for design and testing of pressure-sensitive bumpers, plates, wires and similar devices

ISO 14118:2017, Safety of machinery — Prevention of unexpected start-up

ISO 14119:2013, Safety of machinery — Interlocking devices associated with guards — Principles for design and selection

ISO 14120:2015, Safety of machinery — Guards — General requirements for the design and construction of fixed and movable guards

ISO/TR 11688-1:1995, Acoustics — Recommended practice for the design of low-noise machinery and equipment — Part 1: Planning

IEC 60204-1:2016, Safety of machinery — Electrical equipment of machines — Part 1: General requirements

IEC 60529:1989+A1: 1999, CSV, Degrees of protection provided by enclosures (IP Code)

IEC 60825-1:2014, Safety of laser products — Part 1: Equipment classification and requirements

IEC 61310-1:2007, Safety of machinery — Indication, marking and actuation — Part 1: Requirements for visual, acoustic and tactile signals

IEC 61439-1:2011, Low-voltage switchgear and controlgear assemblies — Part 1: General rules

IEC 61496-1:2012+Cor.1:2015, Safety of machinery — Electro-sensitive protective equipment — Part 1: General requirements and tests

IEC 61496-2:2013, Safety of machinery — Electro-sensitive protective equipment — Part 2: Particular requirements for equipment using active opto-electronic protective devices (AOPDs)

IEC 61496-3:2018, Safety of machinery — Electro-sensitive protective equipment — Part 3: Particular requirements for Active Opto-electronic Protective Devices responsive to Diffuse Reflection (AOPDDR)

IEC 61800-5-2:2016, Adjustable speed electrical power drive systems — Part 5-2: Safety requirements — Functional

IEC 62477-1:2012+A1: 2016, Safety requirements for power electronic converter systems and equipment — Part 1: General

EN 847-1:2017, Tools for woodworking — Safety requirements — Part 1: Milling tools, circular saw blades

EN 847-2:2017, Tools for woodworking — Safety requirements — Part 2: Requirements for the shank of shank mounted milling tools/circular saw blades
