ISO 19626-2:2021 Processes, data elements and documents in commerce, industry and administration — Trusted communication platform for electronic documents —Part 2: Applications

标准简介

Processes, data elements and documents in commerce, industry and administration — Trusted communication platform for electronic documents —Part 2: Applications是国际标准化组织(International Organization for Standardization，简称ISO)于2021‑02‑04发布的ISO标准，适用于国际范围。

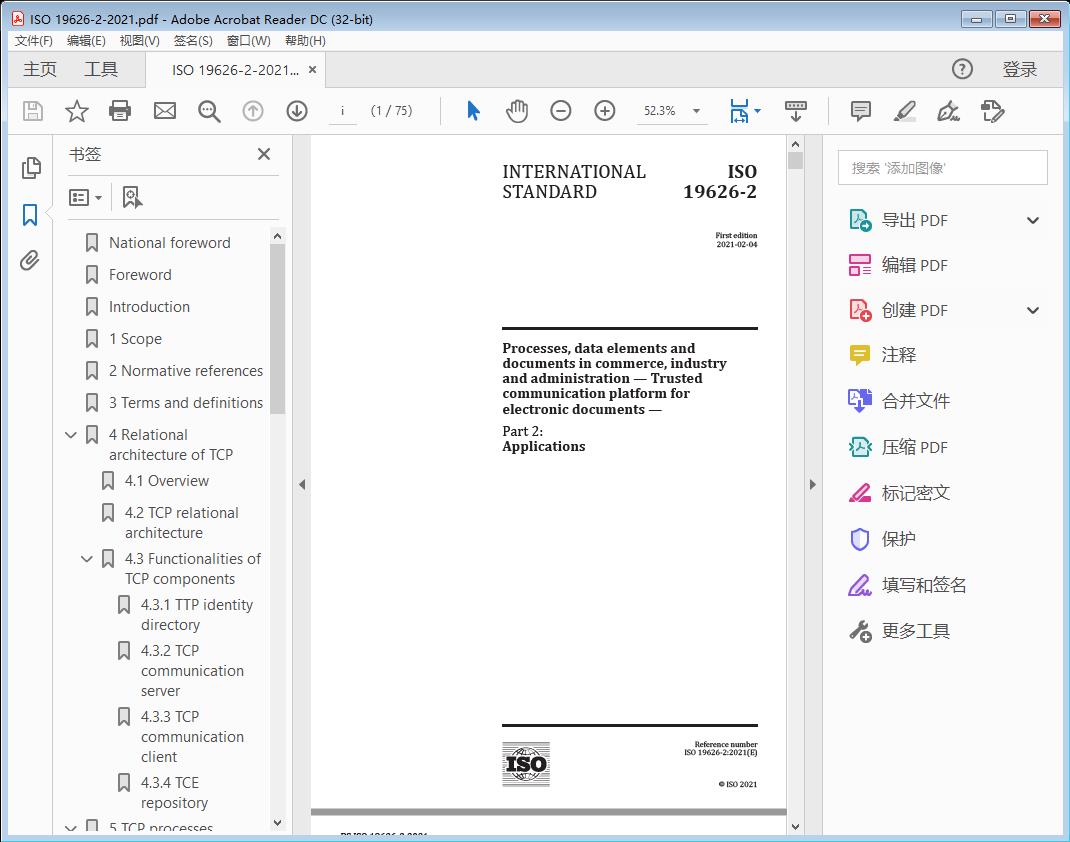

标准截图



标准文档说明

标准文档类型为Processes, data elements and documents in commerce, industry and administration — Trusted communication platform for electronic documents —Part 2: Applications高清PDF版本（文字版），标准文档内可进行搜索，可以复制原文，可粘贴。

标准部分原文

INTERNATIONAL STANDARD ISO 19626-2:2021

Processes, data elements and documents in commerce, industry and administration — Trusted communication platform for electronic documents —

Part 2: Applications

1 Scope

As a connected standard of ISO 196261‑ , this document defines the communication interactions between TCP system components and specifies their detailed interfaces — the processes and the APIs of the TCP system components.

It provides the common communication interface for deployment and implementation of the system components, and their functions in a specific technology-neutral way to those who consider applying and establishing a TCP system.

2 Normative references

The following documents are referred to in the text in such a way that some or all of their content constitutes requirements of this document. For dated references, only the edition cited applies. For undated references, the latest edition of the referenced document (including any amendments) applies.

ISO 196261‑ , Processes, data elements and documents in commerce, industry and administration — Trusted communication platforms for electronic documents — Part 1: Fundamentals

3 Terms a nd definiti ons

For the purposes of this document, the terms and definitions given in ISO 196261‑ and the following apply.

ISO and IEC maintain terminological databases for use in standardization at the following addresses:

— ISO Online browsing platform: available at https://www.iso.org/obp

— IEC Electropedia: available at http://www.electropedia.org/

3.1

blacklist

list of e-identities (3.3) of the originators who are proved having ‘malicious intent’

Note 1 to entry: If a message is confirmed as spam (3.5), an e-identity who sent the spam is classified as a sender having ‘malicious intent’.

Note 2 to entry: An addressee receiving a message from the originator in the blacklist can reject receiving the message.

3.2

characteristic information

unique identifying information to identify the entity in the offline (real) world such as a resident registration number, social security number, or identification number of an IoT device

ISO 19626-2:2021

3.3

e-identity

sole object to identify the entity who is the actual subject of communication activity under a TCP system

Note 1 to entry: In a TCP, it is the object which expresses the entity who is the actual subject of all activities including transmission, reception, and perusal (viewing or reading), etc. of e‑ documents after the electronic verification of identity.

3.4

e-identity ID

name that refers to an e-identity (3.3) identifying a value an e-identity gives itself for identification

Note 1 to entry: With the ID, the e‑ identity expresses itself and distinguishes itself from other e‑ identities.

3.5

spam

unsolicited email, which can carry malicious contents and/or scam messages

[SOURCE: ISO/IEC 27033-1:2015, 3.37, modified — "unsolicited emails" has been replaced with "unsolicited email".]

3.6

whitelist

list of trusted communication servers in a TCP

Note 1 to entry: If a communication server is proved that the one is secure technically and politically and complies with a standard and policy of the TCP, then TTP (trusted third party) directory server adds the one to its whitelist.

4 Relational architecture of TCP

4.1 Overview

ISO 196261‑ presents 2 types of ‘TCP main’ and ‘TCP client’ in system architecture. As a connected standard, this document enhances its relational architecture at the view of the interface.

As shown in Figure 1, once a transmitting entity (i.e, a sender) makes a delivery request to a receiving entity (i.e. a receiver), each of the components can be linked to one another through linkage interfaces, and the communication server is enabled to form an entrusted chain with a relying party. The pair‑

linked communication servers implement communication that can be entrusted, and through their interactions, generate TCE and can possess evidence in the TCE repository.

Figure 1 — TCP relational architecture
