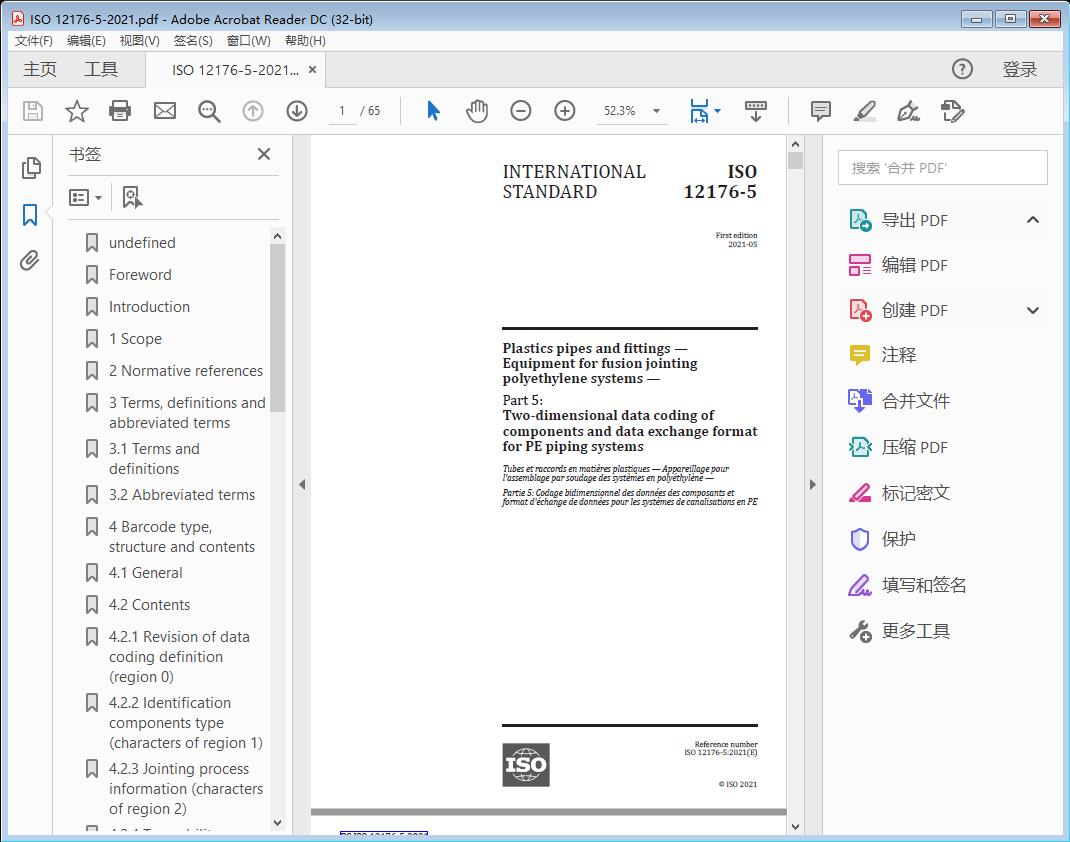

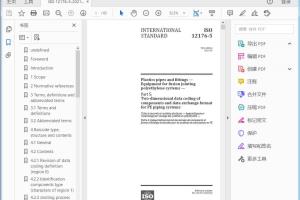

标准截图



标准文档说明

标准文档类型为Plastics pipes and fittings — Equipment for fusion jointing polyethylene systems —Part 5: Two-dimensional data coding of components and data exchange format for PE piping systems高清PDF版本（文字版），标准文档内可进行搜索，可以复制原文，可粘贴。

标准部分原文

INTERNATIONAL STANDARD ISO 12176-5:2021(E)

Plastics pipes and fittings — Equipment for fusion jointing polyethylene systems —

Part 5: Two-dimensional data coding of components and data exchange format for PE piping systems

1 Scope

This document specifies an encoding system for data of components, assembly methods and jointing operations for polyethylene (PE) piping systems for gas, water and other industrial applications. These data can be used in a traceability system and/or used to perform the fusion of components by using equipment as specified in ISO 12176-1 and in ISO 12176-2.

This encoding system is explained in ISO/IEC 16022, ISO/IEC 18004 and ISO/IEC 24778 which refer to established code types, e.g. QR code.

Data to be encoded are: fusion cycle(s), traceability of manufactured products, other manufacturer’s information that can also be given on websites such as voluntary certificates of quality and approvals.

This document specifies the export of data (type, format and sequence) from a data retrieval system.

Provisions of this document are applicable to polyethylene components conforming to ISO 4427-2, ISO 4427-3, ISO 4437-2, ISO 4437-3, ISO 4437-4 and ISO 15494, and can also be applicable to any other components used in PE systems.

ISO 13950 and ISO 12176-4, which partly cover the fields of application of this document, can be used in parallel.

2 Normative references

The following documents are referred to in the text in such a way that some or all of their content constitutes requirements of this document. For dated references, only the edition cited applies. For undated references, the latest edition of the referenced document (including any amendments) applies.

ISO/IEC 10646, Information technology — Universal coded character set (UCS)

ISO 12176-1, Plastics pipes and fittings — Equipment for fusion jointing polyethylene systems — Part 1: Butt fusion

ISO 12176-2, Plastics pipes and fittings — Equipment for fusion jointing polyethylene systems — Part 2: Electrofusion

ISO 12176-3, Plastics pipes and fittings — Equipment for fusion jointing polyethylene systems — Part 3: Operator's badge

ISO/IEC 16022, Information technology — Automatic identification and data capture techniques — Data Matrix bar code symbology specification

ISO/IEC 18004, Information technology — Automatic identification and data capture techniques — QR Code bar code symbology specification

ISO/IEC 21778, Information technology — The JSON data interchange syntax

ISO 12176-5:2021(E)

ISO/IEC 24778, Information technology — Automatic identification and data capture techniques — Aztec Code bar code symbology specification

ASTM F 2897-15a, Standard Specification for Tracking and Traceability Encoding System of Natural Gas Distribution Components (Pipe, Tubing, Fittings, Valves, and Appurtenances)

3 Terms, definitions and abbreviated terms

For the purposes of this document, the following terms and definitions apply.

ISO and IEC maintain terminological databases for use in standardization at the following addresses:

— ISO Online browsing platform: available at https:// www .iso .org/ obp

— IEC Electropedia: available at http:// www .electropedia. org/ 3.1 Terms and definitions

3.1.1

delimiter

character used to define a specific set of data

3.1.2

“]”

hexadecimal character code 5d

delimiter (3.1.1) of fields used in region data

3.1.3

“~”

hexadecimal character code 7e

delimiter (3.1.1) of sub-fields

3.1.4

fusion equipment

equipment that conforms to either ISO 12176-1 (butt fusion machine) or to ISO 12176-2 (control unit)

3.1.5

jointing process

act of jointing separate parts of a plastic piping system

Note 1 to entry: For the purpose of this document a fusion process can be either electro-fusion or butt fusion.

Note 2 to entry: For the purpose of this document jointing can also be performed using a mechanical fitting as defined in ISO 17885.

3.1.6

JSON

Java Script Object Notification

lightweight data-interchange format

Note 1 to entry: JSON is based on a subset of the JavaScript Programming Language Standard, ECMA-262 3rd Edition – December 1999.

Note 2 to entry: JSON is defined by ISO/IEC 21778.

3.1.7

JSON schema

JSON-based format for describing JSON data

Note 1 to entry: Published on https://j son -schema .org.
