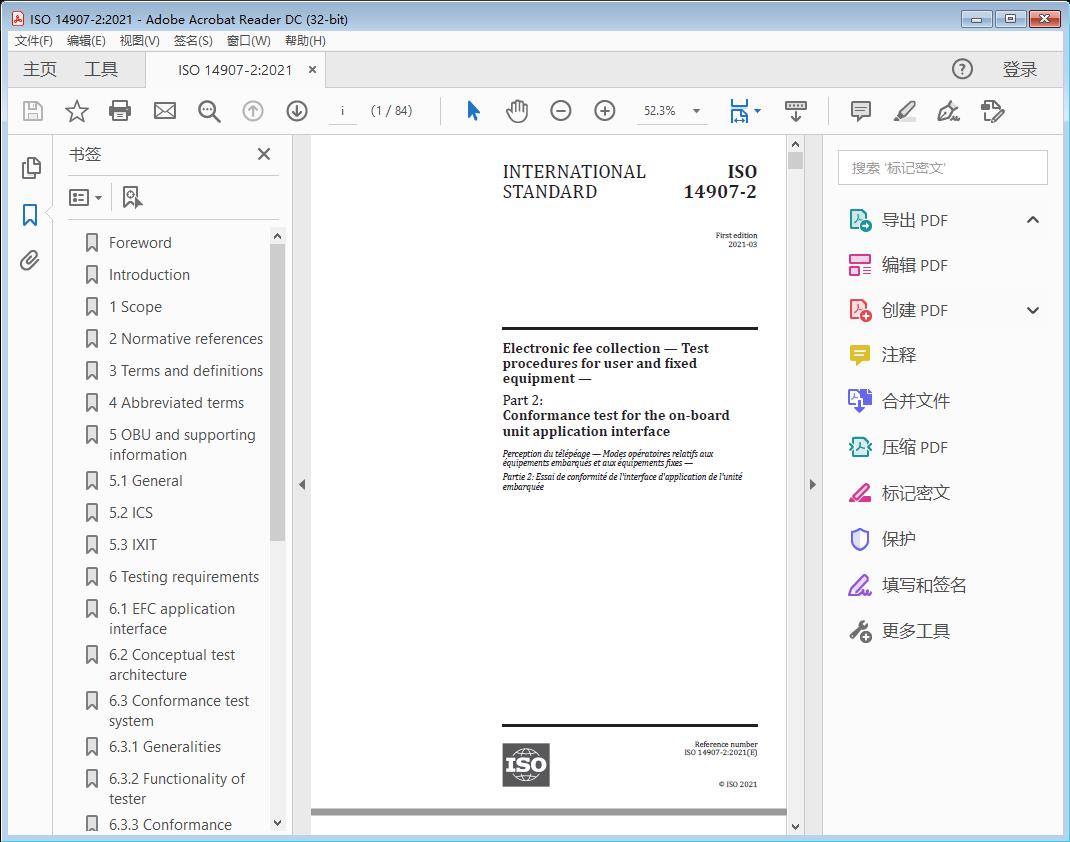

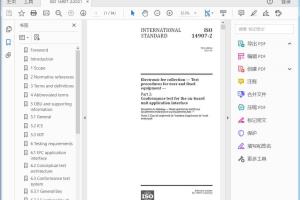

标准截图



标准文档说明

标准文档类型为Electronic fee collection — Test procedures for user and fixed equipment —Part 2: Conformance test for the on-board unit application interface高清PDF版本（文字版），标准文档内可进行搜索，可以复制原文，可粘贴。

标准部分原文

Electronic fee collection — Test procedures for user and fixed equipment —

Part 2: Conformance test for the on-board unit application interface

1 Scope

This document describes tests which verify on-board unit (OBU) conformance of functions and data structures implementations, as defined in the implementation conformance statement (ICS) based on ISO 14906 for EFC applications.

This document defines tests for assessing OBU conformance in terms of :

— basic dedicated short-range communication (DSRC) L7 functionality,

— EFC application functions,

— EFC attributes (i.e. EFC application information),

— the addressing procedures of EFC attributes and (hardware) components,

— the EFC transaction model, which defines the common elements and steps of any EFC transaction, and

— the behaviour of the interface so as to support interoperability on an EFC-DSRC application interface level.

After the tests of isolated data items and functions (C.2 to C.4), an example is given for testing a complete EFC transaction (C.3). Although this document defines examples of test cases for DSRC and EFC functionality (see Annex C), it does not intend to specify a complete test suite for a certain implementation. To compose a test suite for a specific EFC implementation, the test cases can be modified and new test cases can be defined and added in order for the conformance test suite to be complete. It can be useful to consider the following when defining a complete test suite:

— small range: “exhaustive testing” of critical interoperability/compatibility features,

— large range: testing of boundaries and random values, and

— composite types: testing of individual items in sequence or parallel.

This document does not define tests which assess:

— performance,

— robustness, and

— reliability of an implementation.

NOTE 1 ISO 14907-1 defines test procedures that are aimed at assessing performance, robustness and reliability of EFC equipment and systems.

NOTE 2 The ISO/IEC 10373 series defines test methods for proximity, vicinity, integrated circuit(s) cards and related devices that can be relevant for OBUs which support such cards.

Annex D provides an informative overview of Japanese on-board equipment (OBE) conformance tests which are based on the ISO 14907 series, in order to illustrate how these can be applied in practice.

2 Normative references

The following documents are referred to in the text in such a way that some or all of their content constitutes requirements of this document. For dated references, only the edition cited applies. For undated references, the latest edition of the referenced document (including any amendments) applies.

ISO 14906, Electronic fee collection — Application interface definition for dedicated short-range communication

EN 12834, Road transport and traffic telematics — Dedicated Short Range Communication (DSRC) — DSRC application layer

3 Terms and definitions

For the purposes of this document, the following terms and definitions apply.

ISO and IEC maintain terminological databases for use in standardization at the following addresses:

— ISO Online browsing platform: available at https:// www .iso .org/ obp

— IEC Electropedia: available at http:// www .electropedia .org/ 3.1

access credentials

AC_CR

trusted attestation or secure module that establishes the claimed identity of an object or application

[SOURCE: ISO/TS 17573-2:2020, 3.4]

3.2

attribute

addressable package of data consisting of a single data element or structured sequences of data elements

[SOURCE: ISO/TS 17573-2:2020, 3.13]

3.3

authenticator

data, possibly encrypted, that is used for authentication

[SOURCE: ISO/TS 17573-2:2020, 3.16]

3.4

channel

information transfer path

[SOURCE: ISO/IEC 7498-2:1989, 3.3.13]

3.5

electronic fee collection

EFC

fee collection by electronic means

Note 1 to entry: Fee and toll are synonyms within the context of standardization of EFC in ISO/TC 204.

[SOURCE: ISO/TS 17573-2:2020, 3.70, modified — Note 1 to entry added.]
