ISO 16287:2021 Plain bearings — Thermoplastic bushes — Dimensions and tolerances

标准简介

Plain bearings — Thermoplastic bushes — Dimensions and tolerances是国际标准化组织于2021-03发布的ISO标准,适用于全球。

标准截图

Plain bearings — Thermoplastic bushes — Dimensions and tolerances

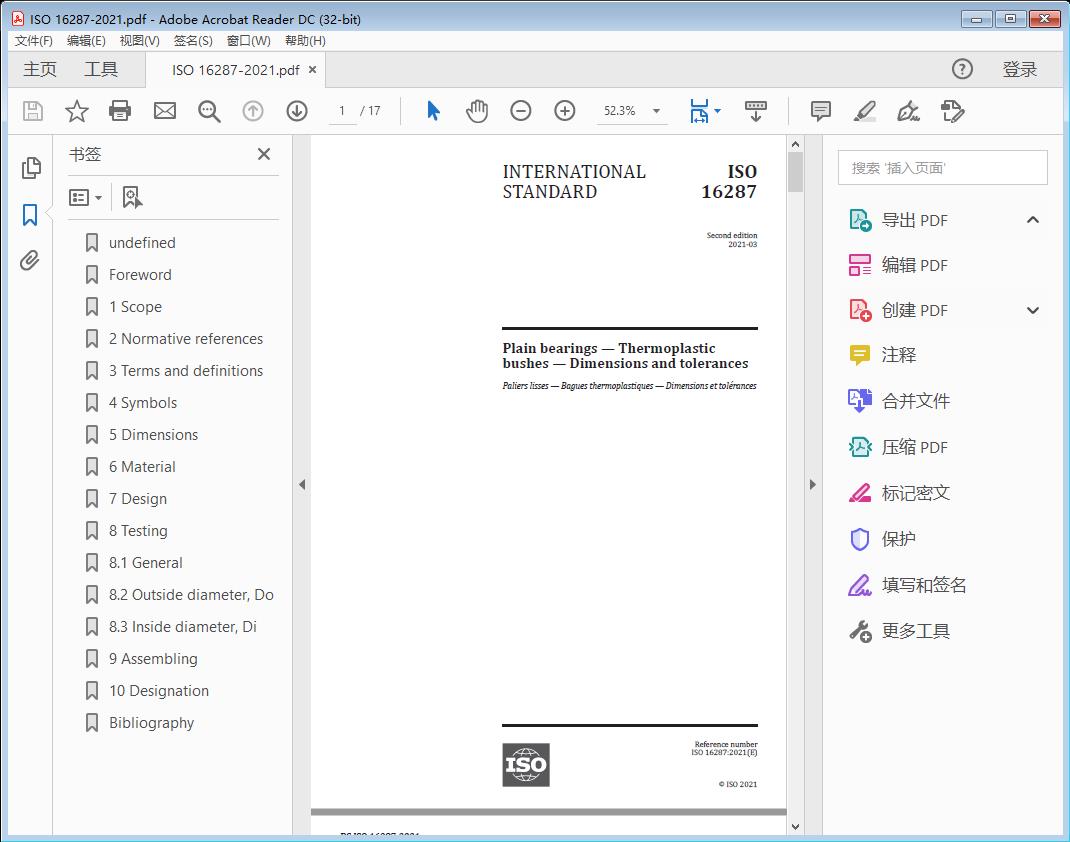

Plain bearings — Thermoplastic bushes — Dimensions and tolerances(截图)



标准文档说明

标准文档类型为Plain bearings — Thermoplastic bushes — Dimensions and tolerances高清PDF版本(文字版),标准文档内可进行搜索,可以复制原文,可粘贴。

标准部分原文

INTERNATIONAL STANDARD ISO 16287:2021(E)

Plain bearings — Thermoplastic bushes — Dimensions and tolerances

1 Scope

This document specifies the dimensions and tolerances for inserted thermoplastic bushes used as plain bearings with or without lubrication grooves in accordance with ISO 12128. These thermoplastic bushes are dimensionally exchangeable to wrapped bushes according to ISO 3547-1.

This document is not applicable to reinforced plastics.

2 Normative references

The following documents are referred to in the text in such a way that some or all of their content constitutes requirements of this document. For dated references, only the edition cited applies. For undated references, the latest edition of the referenced document (including any amendments) applies.

ISO 554, Standard atmospheres for conditioning and/or testing — Specifications

ISO 3547-2, Plain bearings — Wrapped bushes — Part 2: Test data for outside and inside diameters

ISO 6691, Thermoplastics polymers for plain bearings — Classification and designation

3 Terms a nd definiti ons

No terms and definitions are listed in this document.

ISO and IEC maintain terminological databases for use in standardization at the following addresses:

— ISO Online browsing platform: available at https://w ww .iso .org/ obp

— IEC Electropedia: available at http:// www .electropedia .org/ 4 Symbols

B nominal width of bush

B flange thickness

fl

C inside chamfer

i

C outside chamfer

o

D flange diameter

fl

D nominal housing bore diameter

H

D nominal inside diameter of the bush

i

D inside diameter of the bush when inserted in a ring gauge middle H7

i,ch

D nominal outside diameter of the bush

o

r radius for flange bushes

ISO 16287:2021(E)

5 Dimensions

The dimensions and tolerances of the thermoplastic bushes are shown in Figures 1 and 2, according to whether cylindrical (type C) or flanged (type F), and given, in millimetres, in Tables 1, 2, 3 and 4. The surface finishes x and y represented in Figures 1 and 2 are given in Table 5.

For the determination of the IT value (see ISO 286-1) of the coaxiality tolerance, the dimensions of D o

are applicable.

For the determination of the IT value (ISO 286-1) of the axial run-out tolerance, the dimensions of D fl

are applicable.

Figure 1 — Cylindrical bush

Figure 2 — Flanged bush
