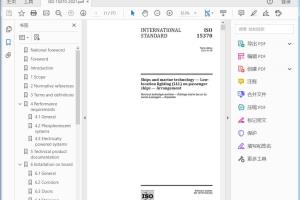

标准截图

标准文档说明

标准部分原文

INTERNATIONAL STANDARD ISO 15370:2021

Ships and marine technology — Low-location lighting (LLL) on passenger ships — Arrangement

1 Scope

This document specifies the requirements for the approval, installation and maintenance of low-

location lighting systems as defined in Chapter II-2, Regulation 13.3.2.5.1 of the International Convention for the Safety of Life at Sea, 1974 (SOLAS 74), as amended in 2000, and detailed in Chapter 11 of the International Code for Fire Safety Systems (FSS Code).

2 Normative references

The following referenced documents are referred to in the text in such a way that some or all of their content constitutes requirements of this document. For dated references, only the edition cited applies. For undated references, the latest edition of the referenced document (including any amendments) applies.

ISO 2919:2012, Radiological protection — Sealed radioactive sources — General requirements and classification

ISO 3795, Road vehicles, and tractors and machinery for agriculture and forestry — Determination of burning behaviour of interior materials

ISO 16069:2017, Graphical symbols — Safety signs — Safety way guidance systems (SWGS)

ISO 24409-1, Ships and marine technology — Design, location and use of shipboard safety signs, fire control plan signs, safety notices and safety markings — Part 1: Design principles

ISO 24409-2, Ships and marine technology — Design, location, and use of shipboard safety signs, fire control plan signs, safety notices and safety markings — Part 2: Catalogue of shipboard safety signs and fire control plan signs

IEC 60529, Degrees of protection provided by enclosures (IP Code)

IEC 60598-2-22, Luminaires — Part 2-22: Particular requirements — Luminaires for emergency lighting

IEC 60945, Marine navigation and radiocommunication equipment and systems — General requirements — Methods of testing and required test results

IMO, International Convention for the Safety of Life at Sea, 1974 (SOLAS 74), as amended

3 Terms a nd definiti ons

For the purposes of this document, the following terms and definitions apply.

ISO and IEC maintain terminological databases for use in standardization at the following addresses:

— ISO Online browsing platform: available at https://www.iso.org/obp

— IEC Electropedia: available at http://www.electropedia.org/

ISO 15370:2021

3.1

accommodation spaces

passenger and crew spaces used for public spaces, cabins, offices, hospitals, cinemas, lounges, barber shop, pantries containing no cooking appliances, corridors, toilets and similar spaces

Note 1 to entry: This definition is consistent with the one given by IMO SOLAS II-2/3.1.

3.2

approval

formal acceptance of the product and arrangement issued by the competent authority (3.4)

3.3

assembly station

distinct and designated internal or external space for mustering and marshalling passengers and crew arranged in the vicinity of, and permitting ready access for the passengers and crew to, the embarkation stations

Note 1 to entry: The assembly station can also be the embarkation station.

3.4

competent authority

administration whose flag the ship is entitled to fly, or an organization authorized by that administration to perform functions required by this document

3.5

dead-end corridor

corridor, or part of a corridor, whose depth is greater than its width, and from which there is only one escape route (3.7)

3.6

EP system

electrically powered system

LLL system (3.12) that requires electrical power for its operation, such as systems using incandescent bulbs, light-emitting diodes, electroluminescent strips or lamps, electrofluorescent lamps, or other electrically powered light-emitting material

3.7

escape route

designated route, principally along corridors, stairways and through exits, by which people can be directed to an assembly station (3.3) and/or to a lifesaving appliances embarkation station

Note 1 to entry: The escape routes are shown on the approved escape plan.

3.8

excitation

effect of UV and visible light in the absorption spectrum that allows the materials to be activated and store energy

3.9

exit

egress along the escape route (3.7) that can lead into a safe space, or to another escape route, not affected by smoke

3.10

f i r e -f i g ht i n g e qu ipment

fixed or portable manually operated equipment that can be used to suppress fire

Note 1 to entry: Smoke detectors and fire-fighters’ outfit are not part of the fire-fighting equipment for the purposes of this document.

EXAMPLE Fire hydrants and hoses, portable fire extinguishers.
