Plywood — Classification

李老师 9/23/2021 浏览 418 ISO 1096:2021 国际，世界范围

标准简介

Plywood — Classification是国际标准化组织(International Organization for Standardization，简称ISO)于2021-05发布的ISO标准，适用于国际，世界范围。

标准截图

Plywood — Classification

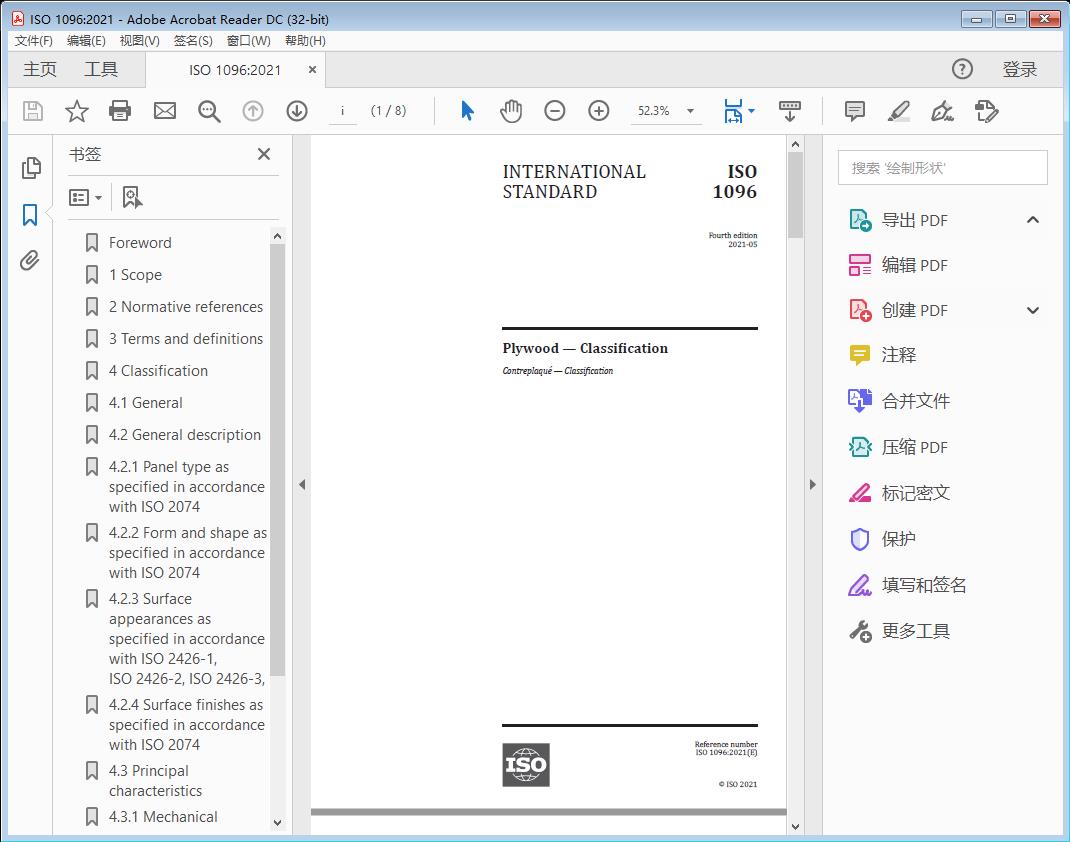

Plywood — Classification(截图)



标准文档说明

标准文档类型为Plywood — Classification高清PDF版本（文字版），标准文档内可进行搜索，可以复制原文，可粘贴。

标准部分原文

Plywood — Classification

1  Scope

This document provides systems of classification of plywood panels based on general appearance and

principal characteristics.

2  Normative references

The following documents are referred to in the text in such a way that some or all of their content

constitutes requirements of this document. For dated references, only the edition cited applies. For

undated references, the latest edition of the referenced document (including any amendments) applies.

ISO 2074, Plywood — Vocabulary

ISO 2426-1, Plywood — Classification by surface appearance — Part 1: General

ISO 2426-2, Plywood — Classification by surface appearance — Part 2: Hardwood

ISO 2426-3, Plywood — Classification by surface appearance — Part 3: Softwood

ISO 2426-4, Plywood — Classification by surface appearance — Part 4: Palm-plywood

ISO 12465, Plywood — Specifications

3  Terms and definitions

No terms and definitions are listed in this document.

ISO and IEC maintain terminological databases for use in standardization at the following addresses:

— ISO Online browsing platform: available at https:// www .iso .org/ obp

— IEC Electropedia: available at https:// www .electropedia .org/

4  Classification

4.1  General

Plywood panels shall be classified in accordance with the criteria chosen in the following list.

4.2  General description

4.2.1  Panel type as specified in accordance with ISO 2074

a) veneer plywood;

b) wood core plywood:

1) blockboard;

2) battenboard;

3) laminboard;

c) composite plywood.

4.2.2  Form and shape as specified in accordance with ISO 2074

a) flat;

b) moulded.

4.2.3  Surface appearances as specified in accordance with ISO 2426-1, ISO 2426-2, ISO 2426-3,

and ISO 2426-4

4.2.4  Surface finishes as specified in accordance with ISO 2074

a) unsanded plywood;

b) sanded plywood (one side or two sides);

c) touch-sanded plywood;

d) scraped plywood;

e) overlaid plywood (resin impregnated paper, plastic, resin film, metal, decorative paper);

f) pre-finished plywood;

g) textured plywood;

h) veneered plywood.

4.3  Principal characteristics

4.3.1  Mechanical properties linked with the type of application

a) plywood for non-structural uses (e.g. furniture, wall panelling);

b) plywood for structural uses (e.g. wall sheathing, floor decking, and concrete forming).

4.3.2  Exposure conditions as specified in accordance with ISO 12465

a) for use in dry conditions;

b) for use in tropical dry/humid conditions;

c) for use in high humidity/exterior conditions.

4.3.3  Specific treatments to improve

a) biological durability (fungi, insects);

b) moisture resistance;

c) reaction to fire.
